I. Introduction

In oinone 5.1.0 and above, there are two ways to import and export designs:

1. Export design data and metadata from the designer to a file by calling the export interface, which provides download/export types of interfaces.
2. Use the metadata online publishing function provided by the platform.

II. Dependency Package

<dependency>
    <groupId>pro.shushi.pamirs.metadata.manager</groupId>
    <artifactId>pamirs-metadata-manager</artifactId>
</dependency>

III. Install GraphQL Tool

Download address: https://github.com/Kong/insomnia/releases

IV. Log in to GQL

(Ⅰ) Example Call Code

mutation {
    pamirsUserTransientMutation {
        login(user: { login: "admin", password: "admin" }) {
            needRedirect
            broken
            errorMsg
            errorCode
            errorField
        }
    }
}

V. Export to Generate JSON File

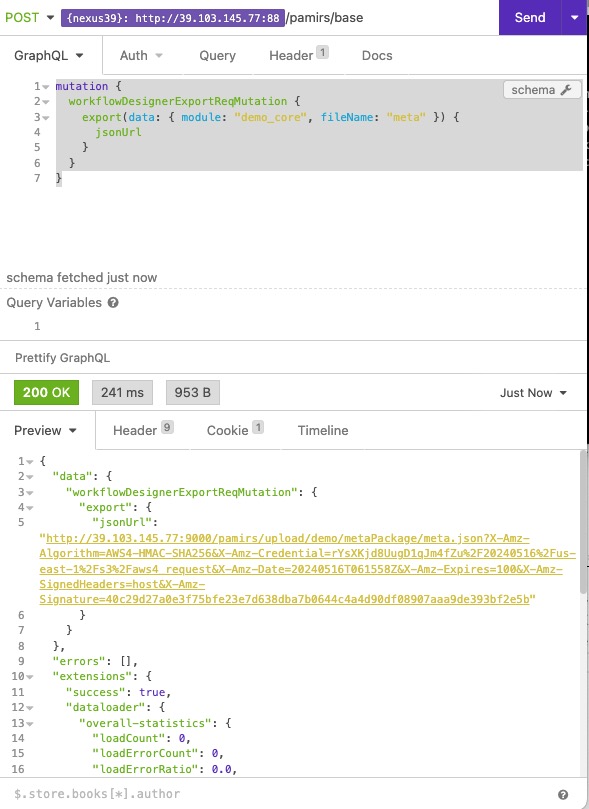

Execute GraphQL to directly return export data, suitable for downloading files through a browser.

(Ⅰ) Full Export

Request example:

mutation {
    dataDesignerExportReqMutation {
        export(data: { fileName: "datavi_data" }) {
            jsonUrl
        }
    }
}

(Ⅱ) Specified Chart Export

Request example:

mutation {
    dataDesignerExportReqMutation {
        export(data: { chartCode: "CT00000000002000", fileName: "datavi_data" }) {
            jsonUrl
        }
    }
}

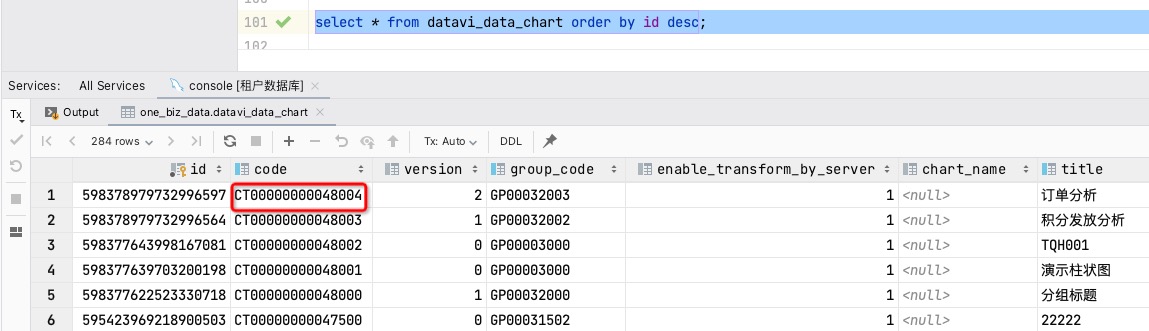

The corresponding chartCode is the coding code of the chart, which can be obtained by querying the database.

(Ⅲ) Specified Report Export

Request example:

mutation {
    dataDesignerExportReqMutation {
        export(data: { reportCode: "RP00001000", fileName: "datavi_data" }) {
            jsonUrl
        }
    }
}

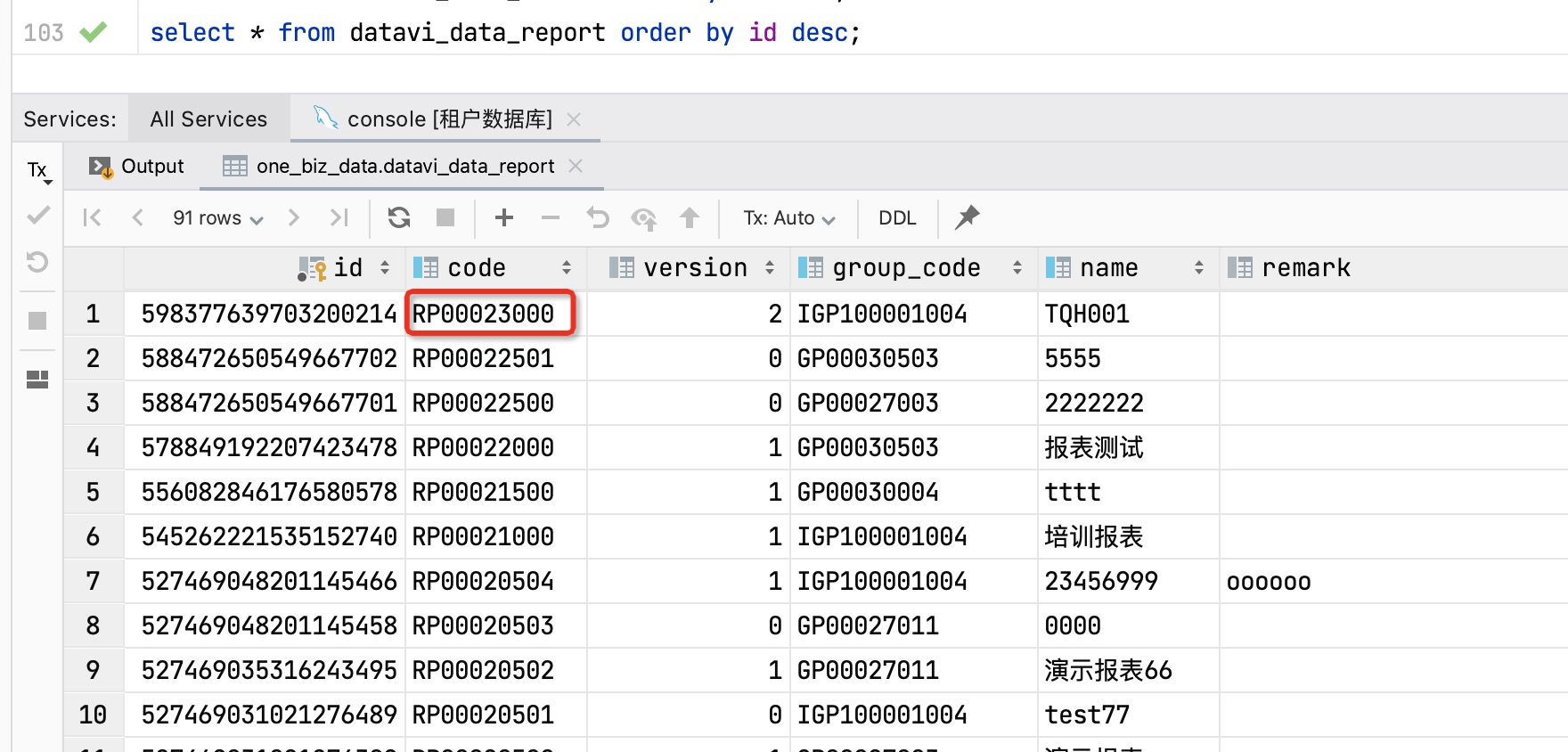

The corresponding reportCode is the coding code of the report, which can be obtained by querying the database.

(Ⅳ) Specified Business Dashboard Export

Request example:

mutation {
    dataDesignerExportReqMutation {
        export(data: { screenCode: "DS00001000", fileName: "datavi_data" }) {
            jsonUrl
        }
    }
}

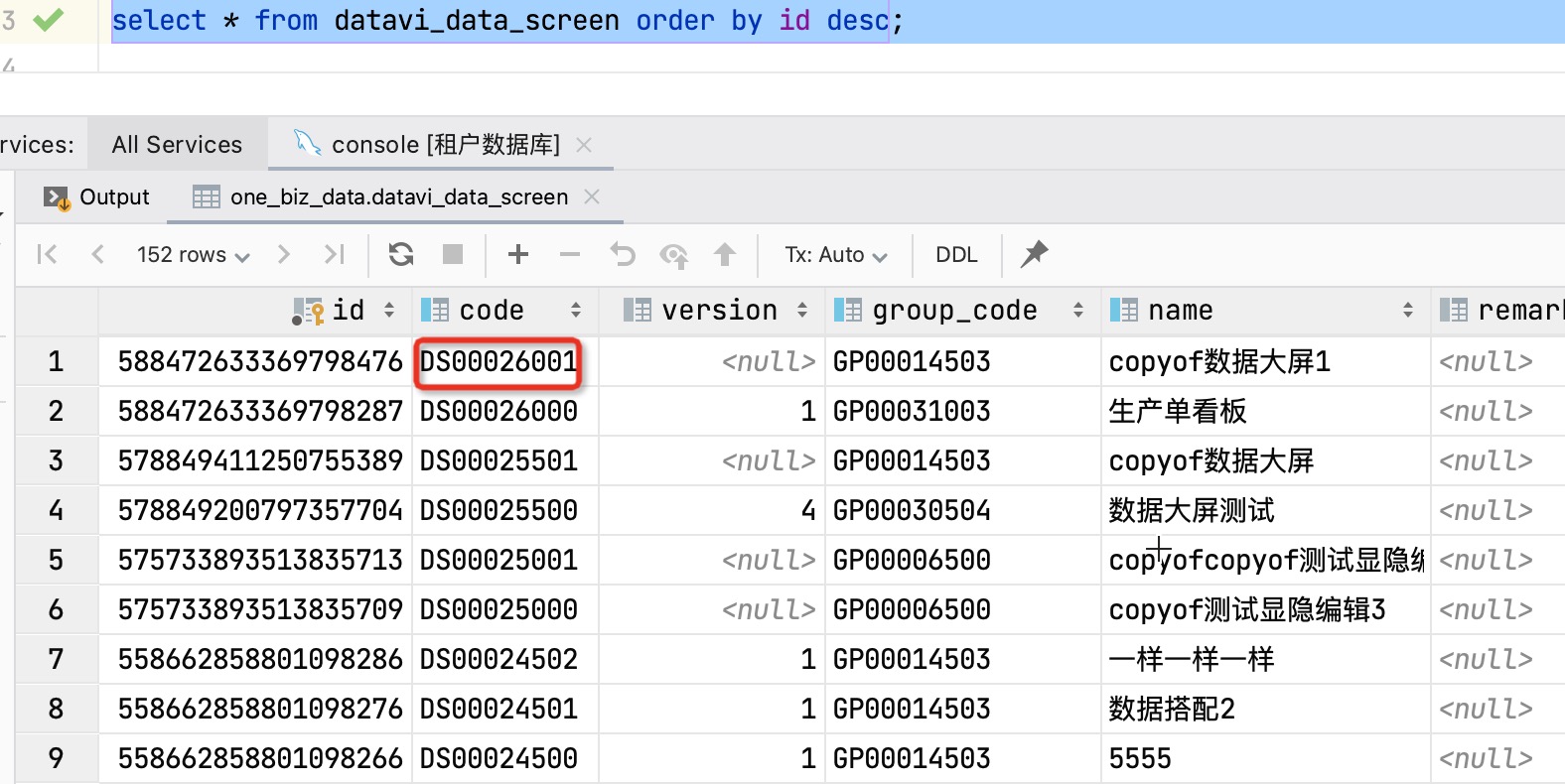

The corresponding screenCode is the coding code of the data dashboard, which can be obtained by querying the database.

VI. Import Example Code in Business Project

Example code for importing metadata:

@Slf4j
@Order(Integer.MAX_VALUE-1)
@Component
public class DemoModuleAppInstall implements MetaDataEditor, LifecycleCompletedAllInit {

    // JSON metadata of the page exported by the process designer
    private static final String INSTALL_DATAVI_META_PATH = "install/datavi_data.json";

    @Override
    public void edit(AppLifecycleCommand command, Map<String, Meta> metaMap) {
        if(StringUtils.isBlank(INSTALL_DATAVI_META_PATH)) return;
        log.info("Start installing metadata");
        try {
            InitializationUtil util = InitializationUtil.get(metaMap, DemoModule.MODULE_MODULE, DemoModule.MODULE_NAME);
            if (null != util) {
                // Designer metadata
                if(StringUtils.isNotBlank(INSTALL_DATAVI_META_PATH)) {
                    log.info("Start installing chart metadata");
                    DesignerInstallHelper.mateInitialization(util, INSTALL_DATAVI_META_PATH, DemoModule.MODULE_MODULE,
                                                             DemoModule.MODULE_NAME);
                }
            }
        } catch (Exception e) {
            log.error("Exception in importing chart designer metadata", e);
        }
    }

    @Override
    public void process(AppLifecycleCommand command, Map<String, ModuleDefinition> runModuleMap) {
        if(StringUtils.isNotBlank(INSTALL_DATAVI_META_PATH)) {
            log.info("Start installing [chart] designer data");
            // Support remote calls, but the execution lifecycle must be LifecycleCompletedAllInit or later. If the designer is installed locally, there is no requirement.
            DesignerInstallHelper.bizInitialization(INSTALL_DATAVI_META_PATH);
        }
    }
}
